In modern civil engineering and large-scale infrastructure construction, the treatment of concrete expansion joints is directly related to the overall stability and service life of the structure. As a porous material with significant thermal expansion and contraction characteristics, concrete inevitably generates displacement stress under the influence of temperature fluctuations, moisture migration, and mechanical loads. To prevent uncontrolled cracking, engineering designs must include scientifically calculated expansion joints filled with high-performance self-leveling sealant. Among various material choices, self-leveling polyurethane sealant has become the preferred solution for large buyers and engineering experts for airport runways, highways, industrial floors, and parking lots due to its superior adhesion, wear resistance, and chemical resistance.
Material Science and Market Selection: Answering "What is the best sealant for expansion joints?"
To answer the core question of "what is the best sealant for expansion joints," one must examine the chemical backbone of the materials and their mechanical performance under extreme conditions. The global market currently offers various systems, including polyurethane, silicone, polysulfide, and hybrid polymers (MS).
The Leading Position of Polyurethane Sealants
Polyurethane sealants are polymers formed by the reaction of diisocyanates and polyols, containing highly polar urethane groups that provide strong chemical bonding to substrates like concrete, stone, and metal. Especially for heavy-load areas like airport runways, self-leveling polyurethane sealant (such as Siway SV313) demonstrates physical toughness that other materials struggle to match.
The advantage of the polyurethane system lies in its adjustable modulus, offering a wide range of choices from low modulus (high flexibility) to high modulus (high strength) to meet different displacement requirements. For horizontal joints subjected to frequent vehicle traffic, high-strength polyurethane sealants effectively resist the embedding of incompressible debris, preventing concrete spalling caused by foreign objects wedged in the joint.

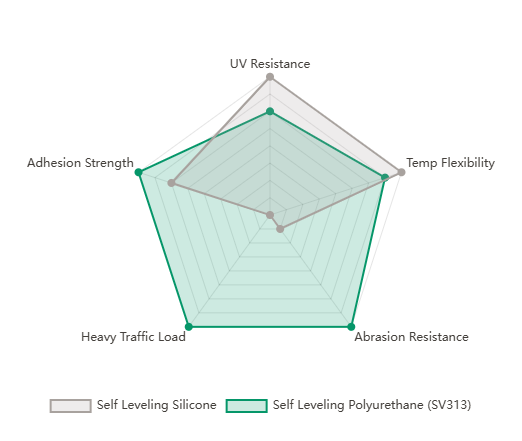

Silicone vs. Polyurethane: Differentiated Competition
Self-leveling silicone sealant is based on a silicon-oxygen (Si-O) backbone, providing excellent UV resistance and temperature stability, with movement capabilities often reaching ±50% or even ±100%. However, in horizontal joints involving heavy traffic loads, the abrasion resistance and tear strength of silicone are typically inferior to polyurethane.
The following table compares key performance indicators for major sealant systems in large-scale engineering:
| Performance Metric | Self-Leveling Polyurethane(PU) | Self-Leveling Silicone | Polysulfide Sealant | Hybrid Polymer(MS) |
| Movement Capability | ±25%to ±35% | ±50%to ±100% | ±25% | ±25%to ±35% |
| Adhesion(Concrete) | Excellent(No primer often) | Good(Usually requires primer) | Superior | Good |
| Abrasion Resistance | Very High | Moderate | Low | Moderate |
| UV Resistance | Good(Requires stabilizers) | Excellent | Average | Excellent |
| Fuel/Chemical Resistance | Excellent | Moderate | Superior | Average |
| Paintability | Yes | No | No | Yes |
| Service Life | 10-15 Years | 20+Years | 10-20 Years | 10-15 Years |
When considering a self-leveling sealant for concrete in projects involving frequent vehicle traffic and chemical exposure (e.g., runways, gas stations, warehouses), polyurethane is undoubtedly the optimal choice for comprehensive performance.

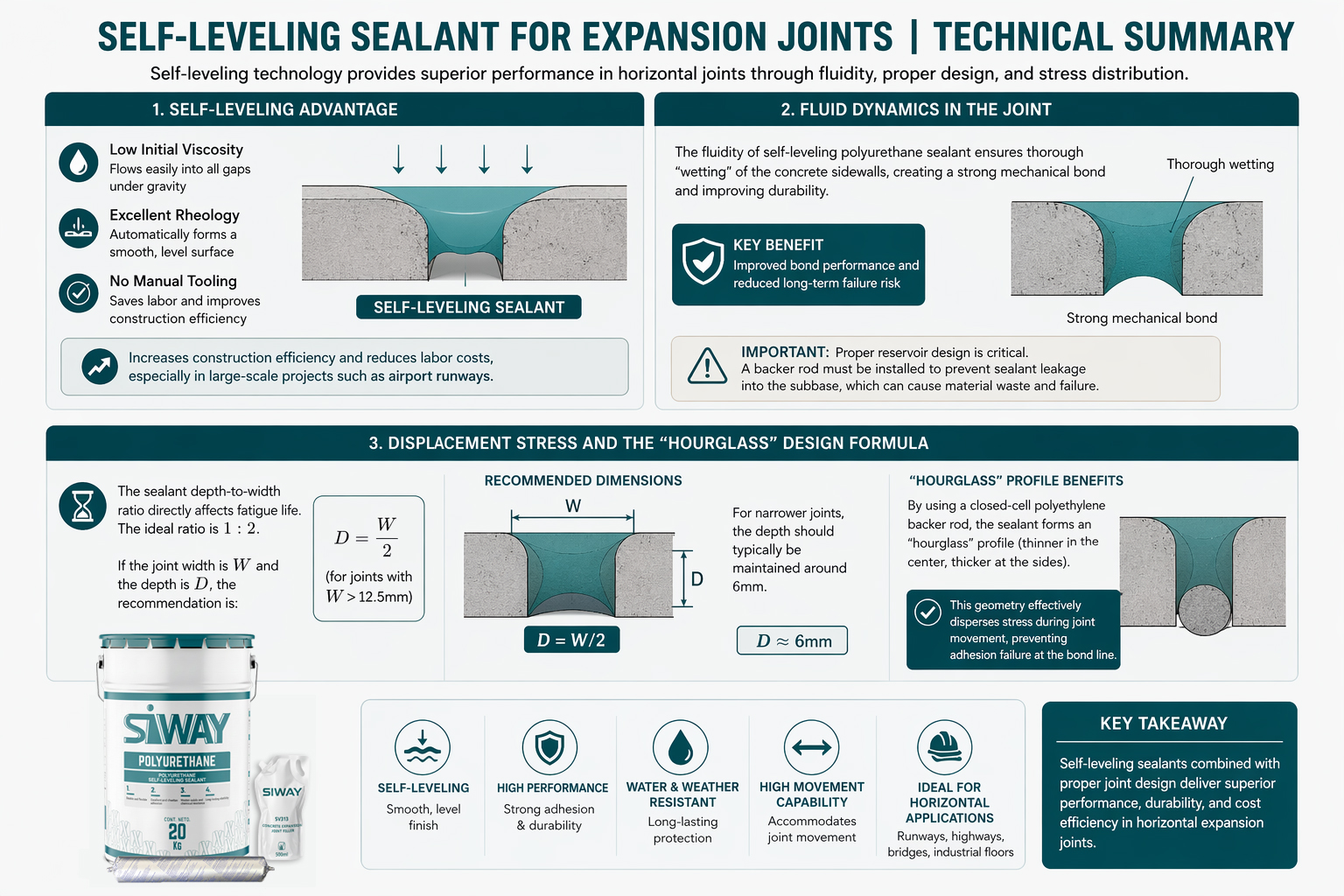

Physics and Construction Advantages of Self-Leveling Technology
Compared to non-sag sealants, self-leveling sealant for expansion joints offers significant technical advantages in horizontal applications. These materials have low initial viscosity and excellent rheology, allowing them to automatically fill all gaps in the joint under gravity, forming a smooth, level surface without the need for manual tooling.
Fluid Dynamics in the Joint
The fluidity of a self-leveling polyurethane sealant ensures thorough "wetting" of the concrete sidewalls, which is the foundation for a strong mechanical bond. For massive infrastructure projects, this characteristic drastically improves construction efficiency and reduces labor costs, particularly on airport runways spanning thousands of linear meters.
However, self-leveling technology requires strict reservoir design. Engineers must ensure a proper backer rod is placed to prevent the sealant from leaking into the subbase, which would cause material waste and structural failure.
Displacement Stress and the "Hourglass" Design Formula
The ratio of sealant depth to width directly affects its fatigue life. Ideally, the depth-to-width ratio for a joint should be 1:2.
If the joint width is W and the depth is D, the recommendation is:
D=W/2(for joints with W＞12.5mm)
For narrower joints, the depth should typically be maintained around 6mm.
By using a closed-cell polyethylene backer rod, the sealant can be shaped into an "hourglass" profile (thinner in the center, thicker at the sides). This geometry effectively disperses stress during joint movement, preventing adhesion failure at the bond line.
Airport Runway Specialist: Deep Dive into Siway SV313 20kg Polyurethane Sealant
For large procurement buyers, Siway SV313 is designed as a heavy-duty polyurethane sealant for airport runways, taxiways, and highways, balancing high performance with economic scale.
Core Technical Advantages of SV313
SV313 is a single-component, moisture-curing polyurethane optimized for large infrastructure:
-
1.Aviation Fuel Resistance: Runway environments are constantly exposed to jet fuel, hydraulic fluids, and de-icing agents. SV313’s molecular cross-linking allows it to maintain physical properties even after long-term fuel immersion, meeting international standards like SS-S-200E.
-
2.High Abrasion Modulus: The cured material possesses high elastic recovery and wear resistance, capable of withstanding the high-speed friction of aircraft tires and the vertical pressure of landing gear.
-
3.Wide Temperature Adaptability: SV313 remains elastic from -40℃ to +80℃, handling seasonal temperature swings across different geographical regions.
The Logistics of 20kg Industrial Pail Packaging
For international bulk buyers, packaging dictates construction cost and efficiency. Compared to 310ml cartridges or 600ml sausages, 20kg pails offer overwhelming advantages for large projects:
-
* Construction Continuity: On runways, 20kg pails paired with pneumatic or electric pump systems allow for long-distance continuous pouring, drastically reducing downtime for package changes.
-
* Waste Reduction: Bulk packaging significantly lowers the ratio of plastic waste. Using bulk pails can reduce packaging waste by over 90% compared to cartridges, aligning with modern Green Engineering (ESG) goals.
-
* Optimal Unit Cost: Pail packaging offers the best material-to-volume ratio, potentially saving 15%-25% on the unit price for large-scale procurement.
What is the best way to seal expansion joints in concrete?
Construction quality is the linchpin of success. Even with top-tier self-leveling polyurethane sealant, the system will likely fail within 1-2 years if construction details are ignored.
Step 1: Rigorous Surface Preparation
Joint sidewalls must be "sound, dry, and clean." For airport-grade work, sandblasting is highly recommended to remove laitance, curing compounds, and old sealant residue.
-
* Moisture Control: Polyurethane is moisture-sensitive; concrete moisture content should be below 4%. High moisture can cause CO₂ bubbles, leading to internal voids in the sealant.
-
* Dust Removal: Use oil-free compressed air to blow out fine dust for molecular-level bonding.
Step 2: Backing System Installation
Install a closed-cell polyethylene backer rod with a diameter approximately 25% larger than the joint width. The backer rod acts as a "bond breaker" to prevent three-sided adhesion. Three-sided adhesion causes a geometric increase in internal stress during expansion, leading to premature tearing.
Step 3: The Strategic Role of Priming
While SV313 has excellent self-adhesion, experts strongly suggest using a polyurethane primer for porous or aged concrete. Primers penetrate concrete micro-pores, sealing capillaries and providing a chemically active interface that can boost adhesion by over 50%.
Step 4: Pouring and Curing Environment
Inject SV313 into the joint, keeping the nozzle near the bottom to displace air and prevent voids.
-
* Temperature Window: The ideal application temperature is between 5 ℃and 35℃. Avoid midday summer heat; since concrete is at its maximum expansion (narrowest joint), sealing then will subject the material to excessive stress when the concrete contracts in winter.
Compliance and Standards: SS-S-200E and ASTM D5893
For large buyers, international compliance is non-negotiable. Runway joints must resist not only movement but also "Jet Blast" and fuel soaking.
| Standard Code | Application | Core Requirements |
| SS-S-200E | Federal/Military | Jet blast resistance,jet fuel resistance,rapid cure |
| ASTM D5893 | Road &Runway | Cold-applied silicone/PU movement,low-temp flexibility |
| ASTM D7116 | Aviation/lndustrial | Performance for fuel-resistant sealants in PCC pavements |
Products meeting SS-S-200E (like SV313-grade sealants) must pass rigorous flame resistance and fuel immersion tests. This ensures the sealant will not soften or peel away when exposed to the high-temperature exhaust of aircraft engines.
Global Procurement: Life-Cycle Cost Analysis (LCCA)
When procuring at a scale of 10,000+ units, buyers shift focus from initial price to Life-Cycle Cost Analysis.
LCCA Model Comparison
Concrete pavements are designed for 20-30 years, but sealants are maintenance items. Low-cost asphaltic fillers may require maintenance every 3-5 years. In contrast, high-performance self-leveling polyurethane sealant like SV313 can extend maintenance cycles to 10-15 years.
Estimated 20-Year Maintenance Cost (per 1,000 linear meters):
| Cost Item | Standard Hot-Applied Filler | High-Performance SV313 |
| Initial Material/Labor | $5,000 | $12,000 |
| Maintenance Frequency | 4 times | 1 time |
| Cost of Downtime (per event) | $50,000 | $50,000 |
| 20-Year Total Cost (NPV) | $225,000 | $62,000 |
A Technology-Driven Approach to Joint Management
In concrete engineering, the success of expansion joints defines the project's reputation. Self-leveling sealant has evolved from a simple filler to a product of precise molecular engineering. By utilizing self-leveling polyurethane sealant, specifically industrial grades like Siway SV313 for high-traffic infrastructure, engineers can effectively combat water ingress, debris intrusion, and chemical attack.
Large procurement buyers should adopt a logic based on Life-Cycle Cost (LCCA), international standards (SS-S-200E), and industrial 20kg packaging. This is not only a requirement for engineering quality but a key path toward sustainable and green infrastructure construction.
Q: What type of sealant is used for expansion joints?
A:The most commonly used sealants for expansion joints are polyurethane sealants, silicone sealants, and polysulfide sealants.
Among them, self leveling polyurethane sealant is widely used for concrete expansion joints because it offers strong adhesion to porous substrates like concrete, excellent flexibility, and long-term durability under traffic loads.
It is commonly applied in:
• airport runway joints
• highway pavement joints
• industrial concrete slabs
• parking structures
• bridge decks
For horizontal joints, contractors typically prefer self leveling sealant because it flows evenly and forms a smooth waterproof surface without manual tooling.
Q: Can you use silicone sealant for concrete expansion joints?
A: Yes, silicone sealant can be used for expansion joints, but it is not always the best choice for concrete.
Silicone sealants perform very well on non-porous surfaces such as glass, aluminum, and metal, which makes them popular for façade and glazing applications. However, adhesion to porous materials like concrete may require primers.
For heavy-duty horizontal concrete joints, self leveling polyurethane sealant is generally preferred because it provides:
• stronger adhesion to concrete
• better abrasion resistance
• improved durability under traffic loads
Q: How long does expansion joint sealant last?
A: The lifespan of expansion joint sealant depends on the material type, environmental conditions, and traffic exposure.
Typical service life ranges include:
• Polyurethane sealant: 10–20 years in many infrastructure applications
• Silicone sealant: 15–20 years in façade or glazing joints
• Polysulfide sealant: 10–15 years in specialized environments
High-quality self leveling polyurethane sealant for concrete expansion joints can provide long-term durability in demanding environments such as highways, airports, and industrial floors.
Q: What is the difference between self leveling sealant and non-sag sealant?
A: The main difference lies in the application surface.
Self leveling sealant
• Designed for horizontal joints
• Flows automatically into the gap
• Creates a smooth, even surface
• Ideal for floors, slabs, and pavement joints
Non-sag sealant
• Designed for vertical or overhead joints
• Maintains its shape without flowing
• Commonly used in façade joints or wall joints
For concrete expansion joints in slabs or pavement, self leveling sealant is the preferred option.
