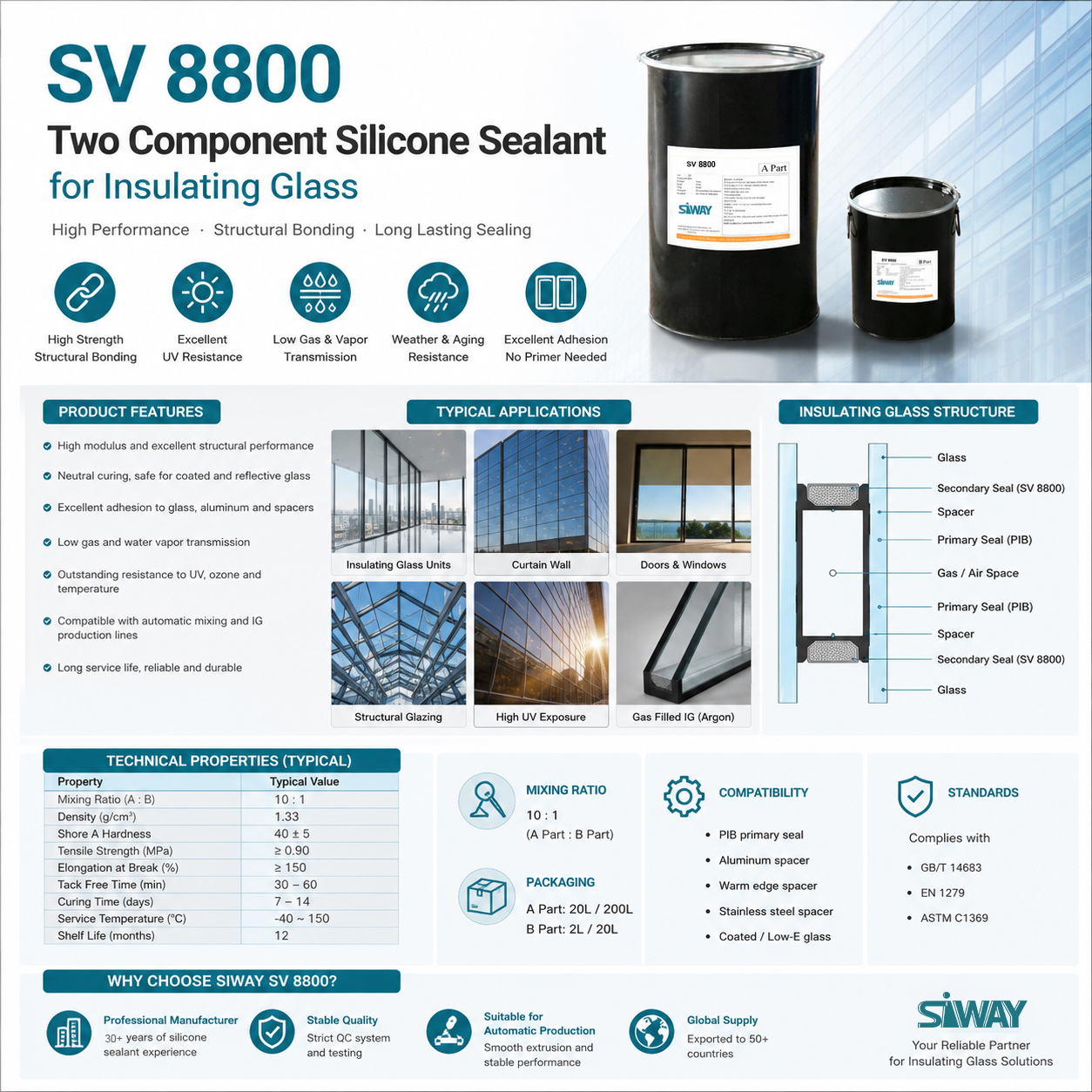

SV-8800 Two Component Silicone Sealant for Insulating Glass
Product Description
FEATURES
High Modulus
UV resistance
Low vapor and gas transmission
Primerless adhesion to coated glass
100% compatible to SV-8890
COLOURS
Component A(Base) - White, Component B(Catalyst)- Black
PACKAGING
Component A(Base): 190L, Component B(Catalyst) :19L
Component A(Base):323kg, Component B(Catalyst): 23kg
TYPICAL PROPERTIES
These values are not intended for use in preparing specifications
| Test standard | Test project | Unit | Value |
| Before curing——25℃，50%R.H. | |||
| GB13477 | Specific gravity(After mixing) | 1.33 | |
| GB13477 | Operating time | min | 20-40 |
| GB13477 | surface drying time（25℃，50%R.H.） | min | 80-188 |
| Corrosivity | No | ||
| 7 days after curing——25℃，50%R.H. | |||
| GB/T 531 | Durometer Hardness | Shore A | 40 |
| GB13477 | The tensile modulus at 12.5% elongation | Mpa | 0.18 |
| The ultimate tensile strength | Mpa | 0.92 | |
| GB13477 | Elongation limit (fracture) | % | 150 |
Product Information
CURE TIME
As exposed to air, SV8800 begins to cure inward from surface. Its tack free time is about 50 minutes; the full and optimal adhesion depends on the sealant depth.
SPECIFICATIONS
SV8800 is designed to meet or even exceed the requirements of:
Chinese national specification GB/T 14683-2003 20HM
STORAGE AND SHELF LIFE
SV8800 should be stored at or below 27℃ in original unopened containers. It has a shelf life of 12 months from the date of manufacture.
HOW TO USE
Surface Preparation
Clean all joints removing all foreign matter and contaminants such as oil, grease, dust, water, frost, old sealants, surface dirt, or glazing compounds and protective coatings.
Application Method
Mask areas adjacent to joints to ensure neat sealant lines. Apply SV8800 in a continuous operation using dispensing guns. Before a skin forms, tool the sealant with light pressure to spread the sealant against the joint surfaces. Remove masking tape as soon as the bead is tooled.
TECHNICAL SERVICES
Complete technical information and literature, adhesion testing, and compatibility testing are available from Siway.
SAFETY INFORMATION
● SV8800 is a chemical product, not edible, no implantation into body and should be kept away from children.
● Cured silicone rubber can be handled without any risk to health.
● Should uncured silicone sealant contact with eyes, rinse thoroughly with water and seek medical treatment if irritation persists.
● Avoid prolonged exposure of skin to uncured silicone sealant.
● Good ventilation is necessary for work and cure places.
DISCLAIMER
The information presented herein is offered in good faith and is believed to be accurate. However, because conditions and methods of using our products are beyond our control, this information should not be used in substitution for customer’s tests to ensure that our products are safe, effective, and fully satisfactory for specific applications.
BASIC USES

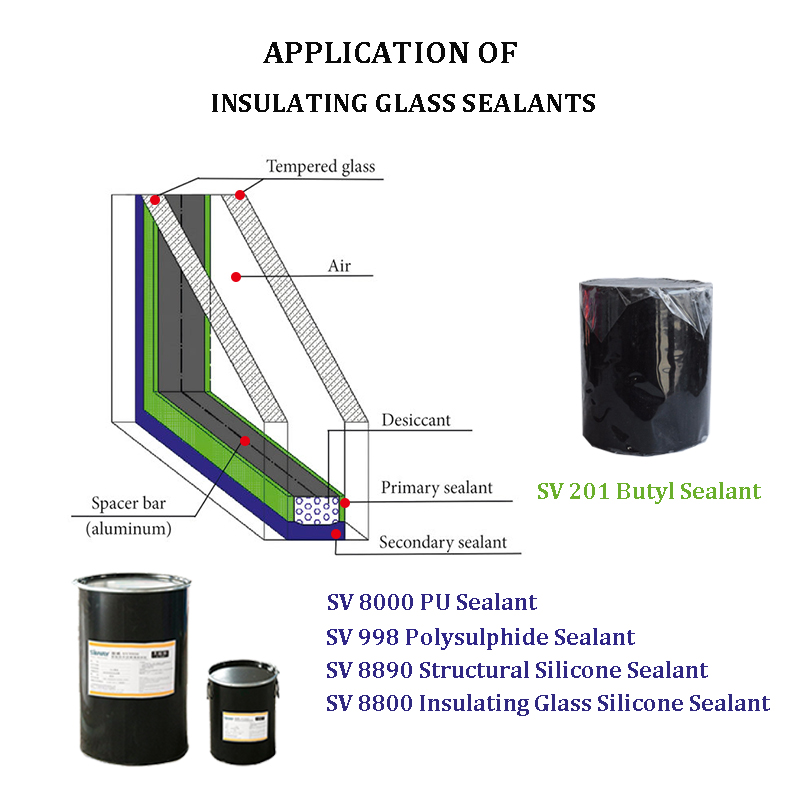

SV8800 Two-part silicone sealant with high strength for use as a secondary seal in insulating glass units.
**SV8800 Insulating Glass Sealant is a high strength secondary two-part silicone sealant specifically designed for high strength applications, where conventional sealants with lower strength would lead to increased joint sizes. It enables economical joint sizes in highly demanding insulating glass (IG) applications such as: high wind in tall buildings, hurricane loads, cold-bent glass or high impact loads such as bomb blast. Smaller joint dimensions can be filled faster and therefore lead to productivity enhancements.
**SV8800 Insulating Glass Sealant is ideal as a secondary sealant for triple and double glazed units and meets EN 1279 requirements for gas-filled IG.
**SV8800 Insulating Glass Sealant can be used in IG applications for structurally glazed facades. It is UV resistant, provides long-term durability and excellent adhesion to glass and IG spacers
