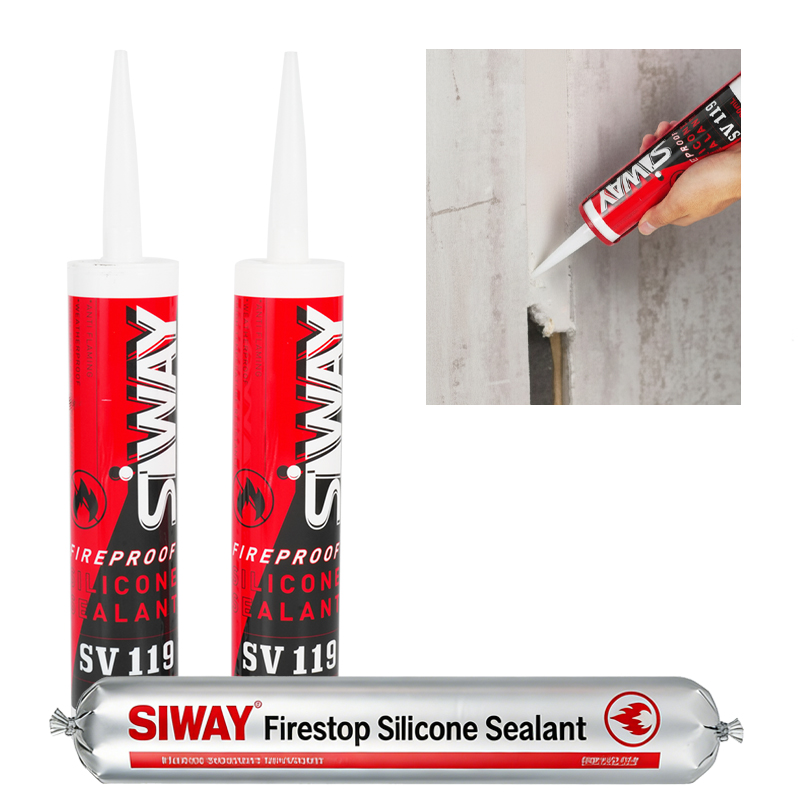

SV119 Gun Grade/Self Leveling Firestop Silicone Sealant
FEATURES
1. 100% silicone
2. Excellent weatherproofing and waterproofing
3. Low gas transmission rate
4. With highly efficient redundant
COLOURS
Transparent, white, black, grey or as required.
PACKAGING
● 260/ 280/ 300/ 310ml plastic cartridge, 24 pcs/carton;
● 590ml sausage, 20 pcs/carton;
● 200L drum.
BASIC USES
● Used for internal and external applications;
● High temperature resistant bond and insulation seal for electronic and electrical industry,heating equipment and lighting equipment, car lamp manufacturing etc.;
● Sanitary&kitchen ceramic gaps sealing;
● For bonding of variety of aluminum plate curtain and aluminum composite panel etc;
● Residential decoration filling and sealing, frame and floor filling;
● For the joint sealing of concrete, plastic, copper, lead and zinc metal, coated glass and mirror;
● For installation of different kinds of aluminum/ plastic doors & windows;
● Residential window and door glazing and sealing.
TYPICAL PROPERTIES
These values are not intended for use in preparing specifications
|
Test standard |
Test project |
Unit |
value |
| Before curing——25℃，50%R.H. | |||
|
GB13477 |
density |
g/m³ | 1.40±0.05 |
|
GB2793 |
Non-volatile components |
% |
99.5 |
|
GB13477 |
Flow, sagging or vertical flow |
mm |
0 |
|
GB13477 |
surface drying time（25℃，50%R.H.） |
min |
45-60 |
|
Curing speed |
mm/24h |
3 |
|
| Sealant curing speed and operating time will have different with different temperatures and temperature, high temperature and high humidity can make sealant curing speed faster, rather low temperature and low humidity are slower.
14days after curing——25℃，50%R.H. |
|||
|
GB13477 |
Durometer Hardness |
Shore A |
22-28 |
|
GB13477 |
The ultimate tensile strength |
Mpa |
1.0 |
|
GB13477 |
elongation at break |
% |
550 |
CURE TIME
As exposed to air, SV119 begins to cure inward from surface. Its tack free time is about 50 minutes; the full and optimal adhesion depends on the sealant depth.
SPECIFICATIONS
SV119 is designed to meet or even exceed the requirements of:
- Chinese national specification GB/T 14683-2003 20HM
STORAGE AND SHELF LIFE
SV119 should be stored at or below 27℃ in original unopened containers. It has a shelf life of 12 months from the date of manufacture.
HOW TO USE
Surface Preparation
Clean all joints removing all foreign matter and contaminants such as oil, grease, dust, water, frost, old sealants, surface dirt, or glazing compounds and protective coatings.
Application Method
Mask areas adjacent to joints to ensure neat sealant lines. Apply SV119in a continuous operation using dispensing guns. Before a skin forms, tool the sealant with light pressure to spread the sealant against the joint surfaces. Remove masking tape as soon as the bead is tooled.
TECHNICAL SERVICES
Complete technical information and literature, adhesion testing, and compatibility testing are available from Siway.
SAFETY INFORMATION
- SV119is a chemical product, not edible, no implantation into body and should be kept away from children.
- Cured silicone rubber can be handled without any risk to health.
- Should uncured silicone sealant contact with eyes, rinse thoroughly with water and seek medical treatment if irritation persists.
- Avoid prolonged exposure of skin to uncured silicone sealant.
- Good ventilation is necessary for work and cure places.
DISCLAIMER
The information presented herein is offered in good faith and is believed to be accurate. However, because conditions and methods of using our products are beyond our control, this information should not be used in substitution for customer’s tests to ensure that our products are safe, effective, and fully satisfactory for specific applications.
Manufacturer
Shanghai Siway Building Material Co.Ltd
No.1 Puhui Road ,Songjiang Dist,Shanghai,CHINA
Tel: +86 21 37682288
Fax:+86 21 37682288
