SV109 Fire Rated Caulking Intumescent Acrylic Sealant

Short Description:

SV109 an acrylic based fire &acoustic seals fire rated intumescent and acoustic sealant that provides movement capability in fire rated joints and seals through-penetrations applications.It helps prevent the spread of flames, smoke, and toxic gases, offering up to 33% movement capability. This sealant provides excellent adhesion to a wide range of building materials and can be easily painted after curing. It isis an emulsion based sealant that swells when subjected to temperatures inexcess of 125°C thatrestricts the passage of smoke and fire Suitable for fire rated cladding, doors & walls


  • Color: Red, White, Grey
  • Volume: 300ml/600ml
  • Consistency: Smooth paste
  • Product Detail

    Product Tags

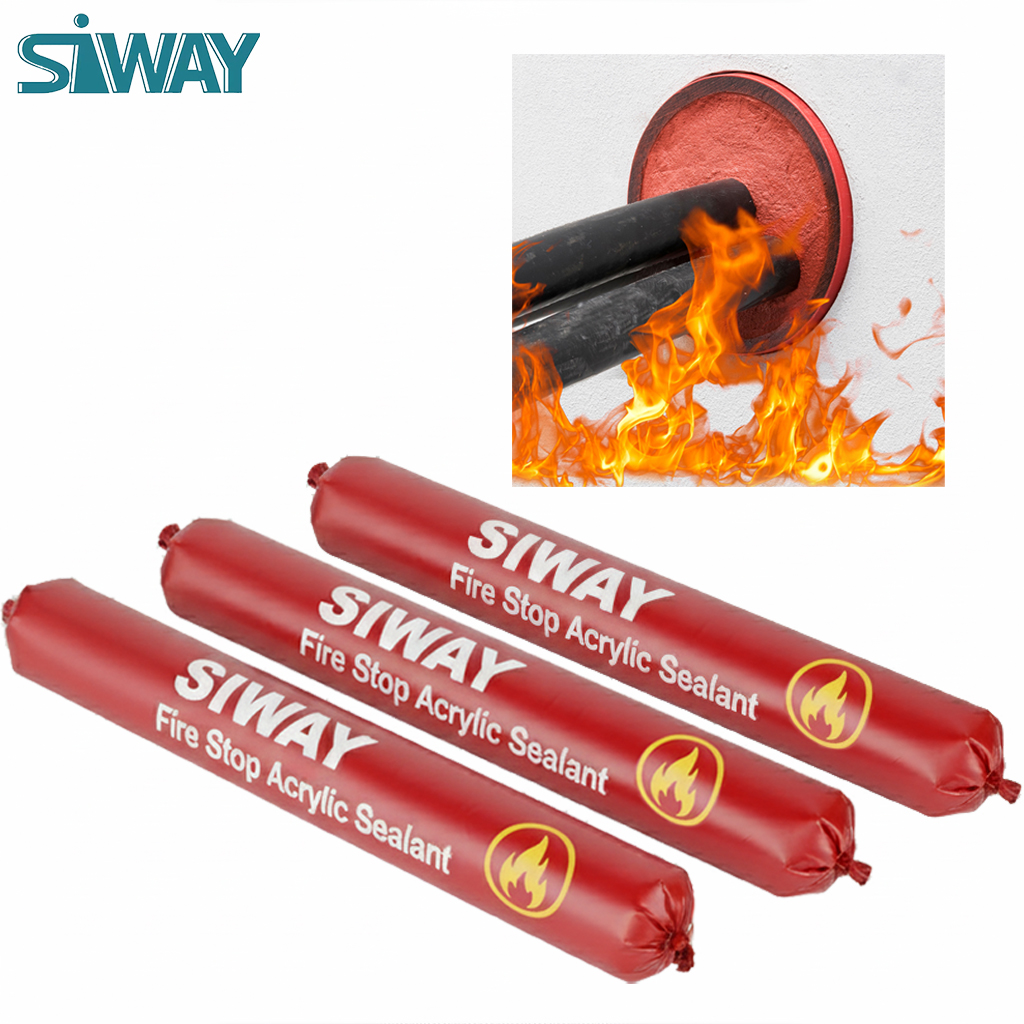

    An acrylic based firestop sealant that provides movement capability in fire rated
joints and seals through-penetrations applications

    Features & Benefits

    --Paintable

    --Silicone-free

    --Seals small openings quickly

    --Easy to clean with water

    --Fast, simple application and clean-up

    --Fire Resistant for up to 4 hours

    --Tested up to 33% movement with 500 cycles in accordance to UL 2079 and ASTM 1966

    custumized color

    Technical data

    Chemical basis Water-based acrylic dispersion
    Color Available in red, white and gray
    Density 99.9 lb/ft³
    Application temperature 35°F to 104°F (1.5°C to 40°C)
    Storage temperature 35°F to 95°F (1.5°C to 35°C)
    Temperature resistance -22°F to 176°F (-30°C to 80°C)
    Shelf life 24 months
    Tack free time 23mins (ventilated at 77°F, 80% rel. humidity)
    Skin-forming time Approx. 15 min
    Curing time Approx. 3 mm / 3 days
    Average volume shrinkage (ASTM C1241)

    22%

    Movement capability Up to 33%
    Mold & mildew Class 0 (ASTM G21-96)
    Electrical resistance Yes
    LEED Compliant Yes (CDPH v1.2-2017)
    LEED VOC 49.5 g/L
    Intumescent No
    Seismic resistant Yes
    Water tightness Yes
    Temperature resistance –22°F to 176°F (–30°C to 80°C)
    Surface burning characteristics
    (ASTM E 84-96)
    Flame Spread: 10
    Smoke Development: 0
    Surface burning characteristics
    (CAN/ULC-S102)
    Flame Spread: 14
    Smoke Developed: 4
    California State Fire Marshall Approvals Yes (pens & joints)

    Application

    --Sealing construction/expansion joints

    --Top-of-wall joints

    --Metal pipes

    --Cable bundles

    --HVAC penetrations

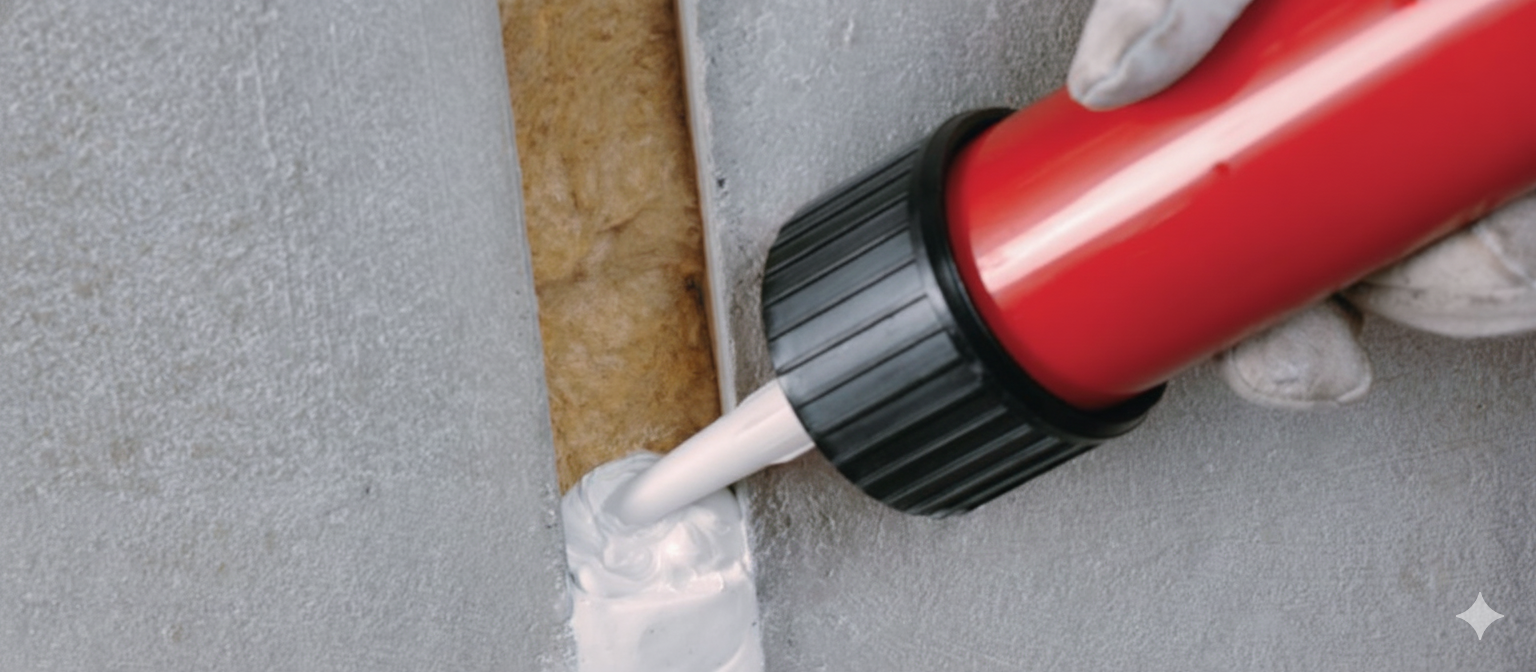

    firestop sealant

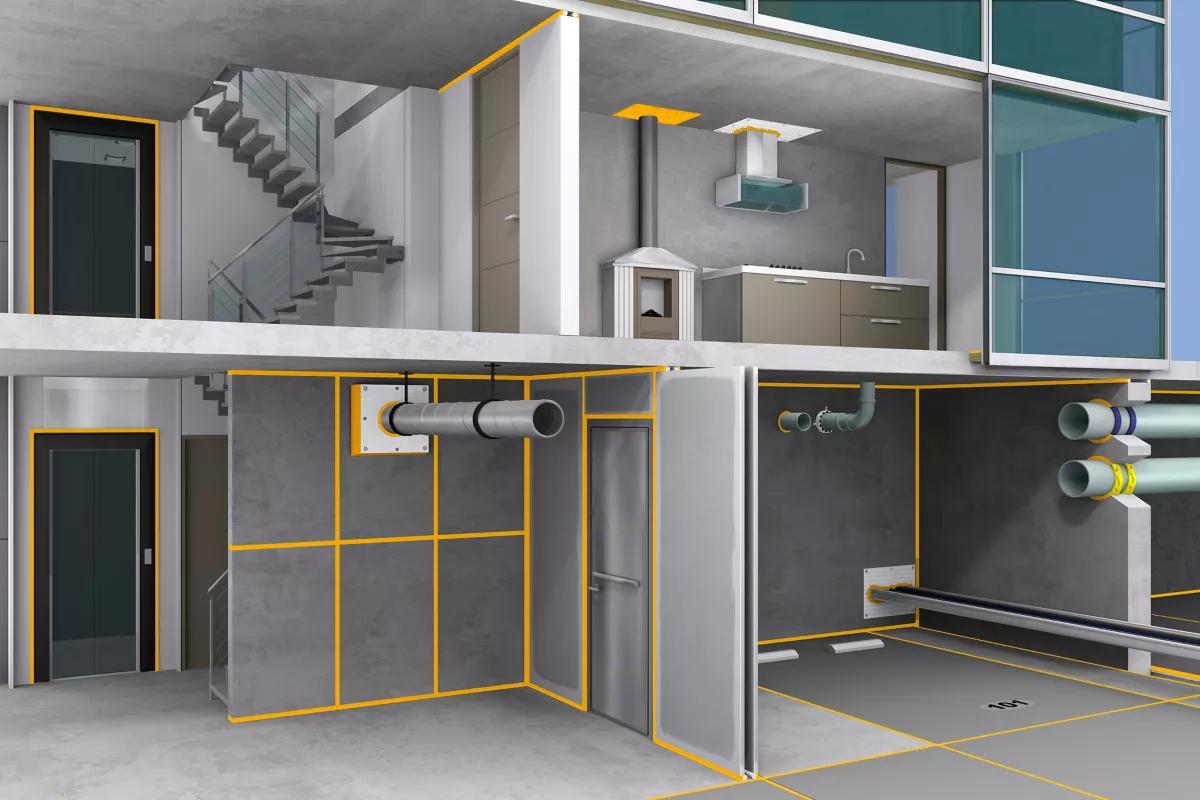

    firestop sealant applications

    Storage and shelf life

    The shelf life is 12 months if stored in unopened-original package in a dry place at temperatures between+5°C and +25°C

    Restrictions

    Damp or humid conditions will significantly extend the cure time.

    Do not apply below 5°C
