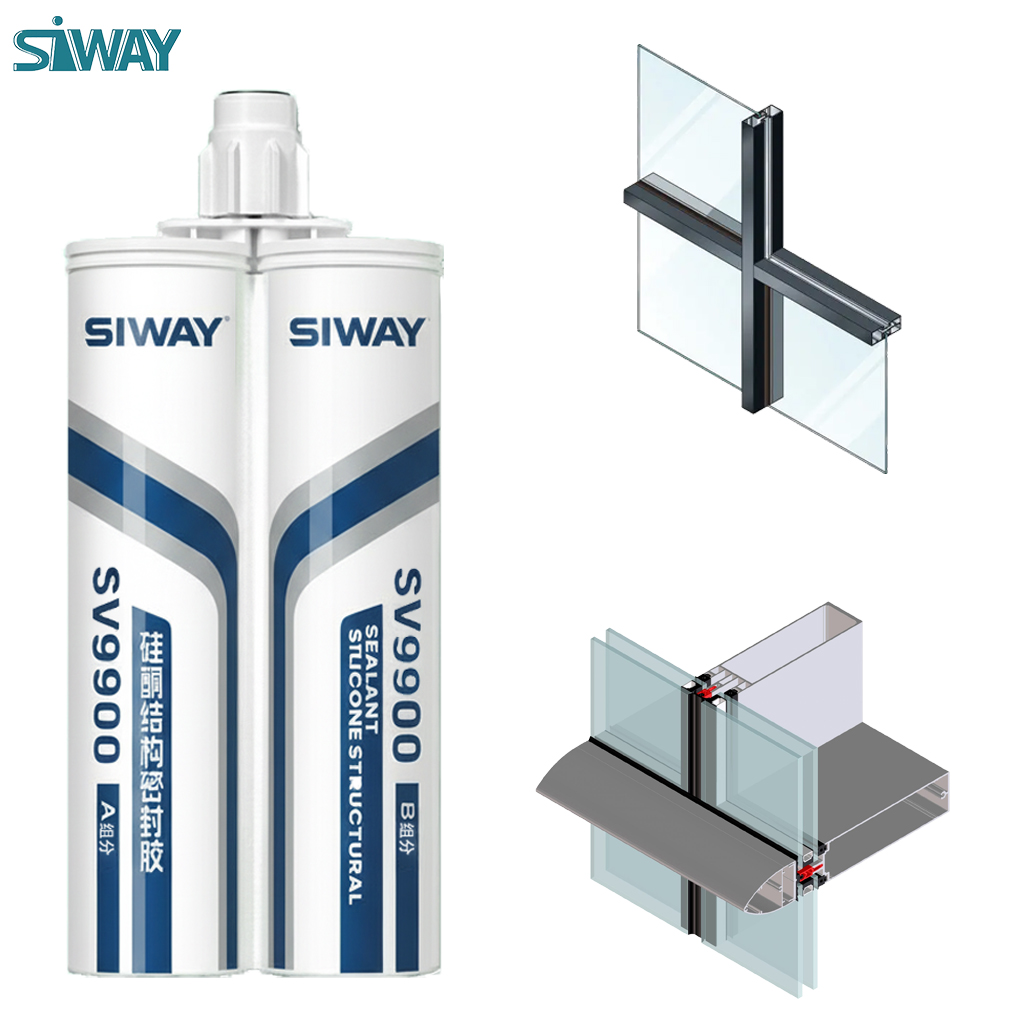

SV9900 Two Component Fast Curing Silicone Structural Sealant
Features:
--Two-component, alkoxy, neutral curing, non-corrosive to metal, coated glass, concrete and marble.
--Non-corrosive curing system.
--No unpleasant odor during curing.
--Excellent weather ability and high resistance to ultraviolet radiation, heat and humidity, ozone and temperature extremes.
--Remains flexible over a temperature range of -58 ºF (-50℃) to 302 ºF (150℃) Good compatibility with other neutral silicone sealants.
Colors:

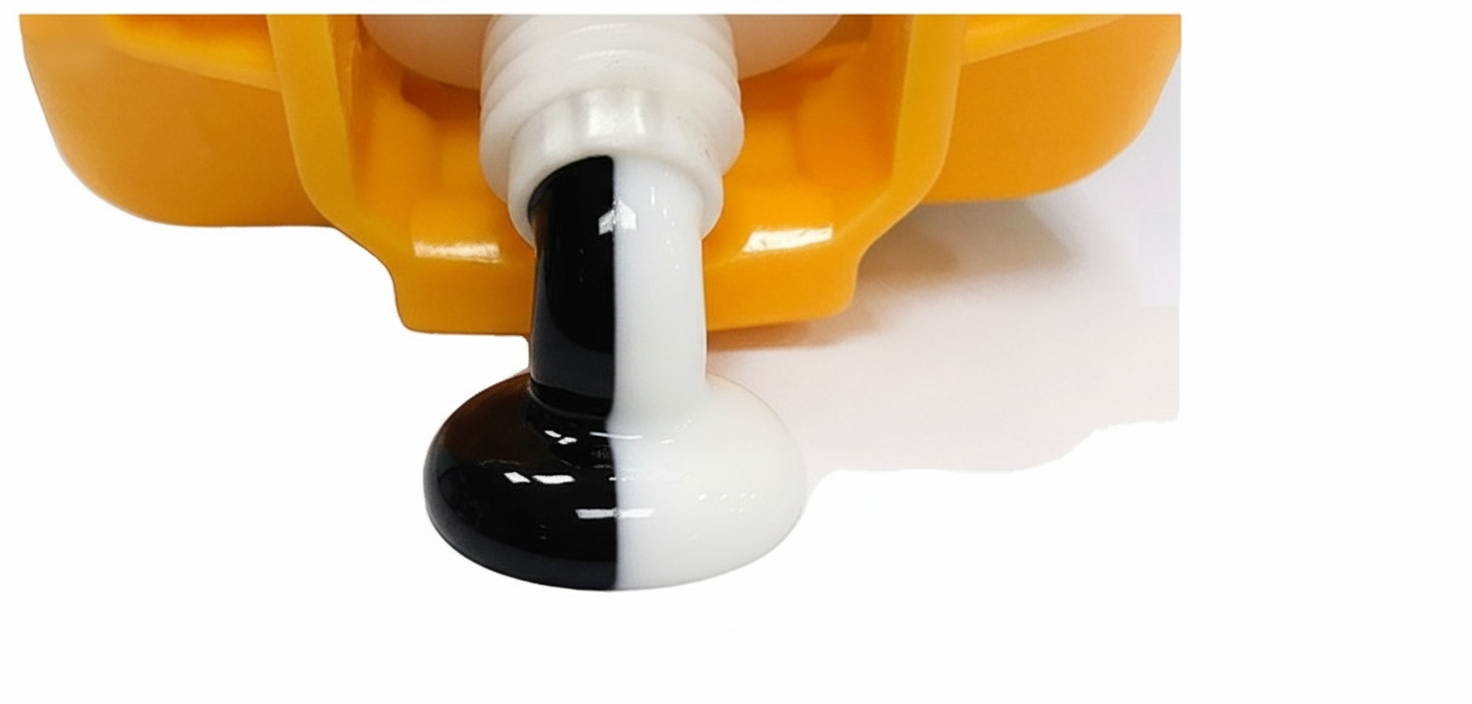

Part A (Base): White; Part B(Catalyst): Black; After Mixed: Black.
Package:
Part A (Base): 185mL
Part B (Catalyst): 185mL
Composition:
Two-part, neutral-curing
RTV silicone sealant

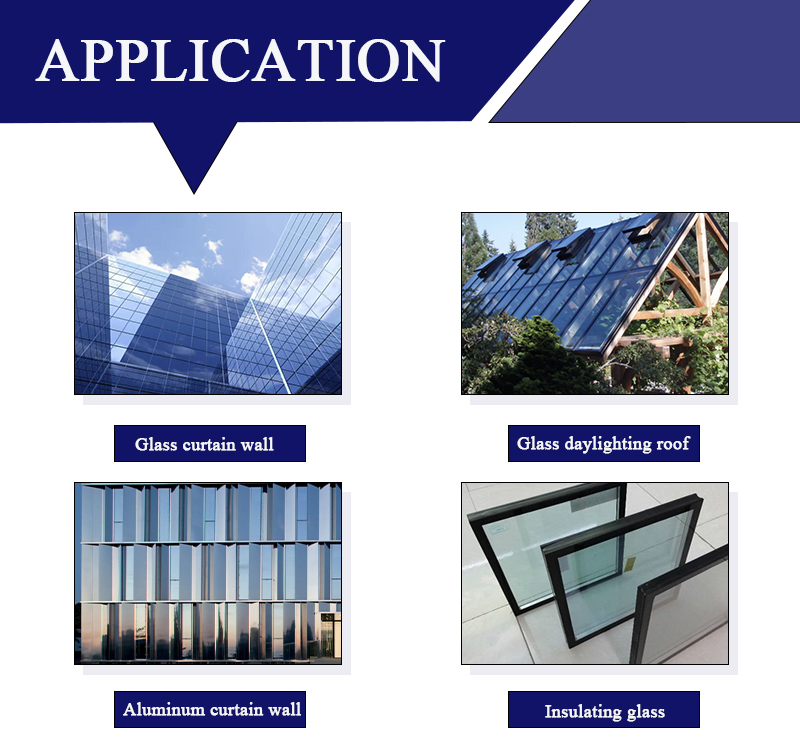

Applications
Structural bonding and sealing of glass, aluminum curtain wall, glass lighting roof and metal structure works.
Home decoration moving doors, porcelain plates, decorative plates, etc., need fast curing bond seal.
In the field of building photovoltaic, fast bonding and sealing of roofing photovoltaic metal parts.
Typical properties
|
Property
|
Result
|
Test method
|
|
Base-As Supplied
|
||
|
Color
|
White
|
|
|
Physical Form
|
Paste
|
|
|
Specific Gravity
|
1.38g/cm³
|
ASTM D1475
|
|
Catalyst-As Supplied
|
||
|
Color
|
Black
|
|
|
Physical Form
|
Viscous Paste
|
|
|
Specific Gravity
|
1.38g/cm³
|
ASTM D1475
|
|
As catalyzed
|
||
|
Color
|
Black
|
|
|
Specific Gravity
|
1.38 g/cm³
|
ASTM D1475
|
|
Tooling Time(23℃/73°F,50%RH)
|
10-20 minutes
|
|
|
Snap time(23℃/73°F,50%RH)
|
20-70 minutes
|
|
|
Flow,Sag or Slump
|
≤0.1mm
|
ASTM C639
|
|
Mix Ratio(By volume)
|
A:B=1:1
|
|
|
Recommend Mix Ratio(By volume)
|
A:B=1:1
|
|
|
VoC Content
|
≤40g/L
|
|
|
As cured-After 21 days at 23℃(73°F)and 50%RH
|
||
|
Durometer Hardness,Shore A
|
40
|
ASTM C661
|
|
Ultimate Tensile Strength
|
1.1MPa
|
ASTM C1135
|
|
Ultimate Elongation
|
1.5
|
ASTM C1135
|
|
Tear Strength,Die B
|
8kN/m
|
ASTM D624
|
Storage and shelf life:
6 months from the date of manufacture when stored at or below 27ºC (80ºF) in the original unopened containers.
Product limitation:
This product should not be applied:
--In structural glazing applications, unless SHANGHAI SIWAY BUILDING MATERIAL CO.,LTD. has reviewed shop drawings for applicability and has performed adhesion and compatibility tests on project substrates, spacer materials and all accompanying accessories. Review and testing is done on a project-by-project basis. No blanket approval is given by SHANGHAI SIWAY BUILDING MATERIAL CO.,LTD. for structural glazing applications. Structural glazing industry guidelines (ASTMC1401) suggest that drawings and details are to be reviewed by all partiesinvolved in the manufacture of an SSG system and for each building project.
-- To building materials that bleed oils, plasticizers or solvents – materials such as impregnated wood, oil-based caulks, green or partially vulcanized rubber gaskets or tapes
-- When surface temperatures below 10ºC (50ºF) or exceed 40ºC (104ºF)
-- Where painting of the sealant is required, as the paint film may crack and peel
-- In below-grade applications For use as an interior penetration fire stop sealing system
-- In horizontal floor joints where abrasion and physical abuse are likely to be encountered
-- To frost-laden or damp surfaces
-- For structural adhesion on bare metals or surfaces subject to corrosion (i.e., mill aluminum, bare steel, etc.)
-- For contact with strong acids or bases
--To surfaces in contact with food
-- For continuous immersion in water
-- For water immersion applications
Do not apply acid-curing (Acetoxy) silicone sealants to this product as this may cause loss of adhesion of SS658 Silicone Structural Sealant to glass or other substrates used in the system.
